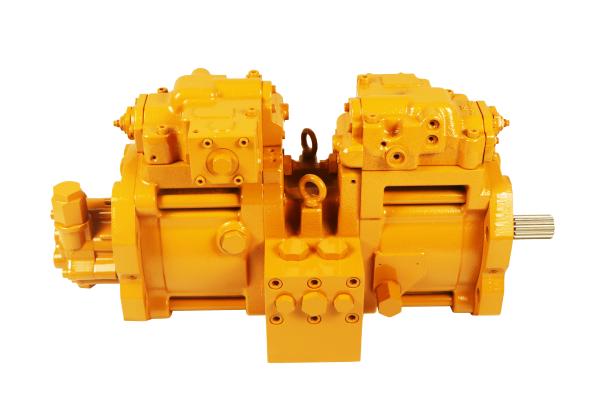

Excavator piston pump 9065879 for hitachi excavator main hydraulic pump ex200
Product description
| Appliion | Crawler excavator |
| Part name | Excavator pump |
| Model | ex200 |
| Part number | 9065879 |
| Brand | Belparts |
| Warranty | 12month |
| Delivery | 2 days after the payment received |
| Shipment | by sea, by air, by express or as require
|
| # | Part No | Part Name | Qty. | Price request |
| 01~73 | 9065879 | PUMP; DOUBLE ASS'Y | 1 | |
| 01 | 1009491 | . CASING; GEAR | 1 | |
| 01 | 1013616 | . CASING; GEAR | 1 | |
| 04 | 3033590 | . GEAR; CENTER | 1 | |
| 05 | 3035589 | . SHAFT; CENTER | 1 | |
| 05 | 3038090 | . SHAFT; CENTER | 1 | |
| 06 | 3033592 | . SLEEVE | 1 | |
| 08 | 4023596 | . BRG.; BALL | 1 | |
| 09 | 4198787 | . BRG.; BALL | 1 | |
| 10 | 4191219 | . RING; RETAINING | 1 | |
| 11 | 4179833 | . SEAL; OIL | 1 | |
| 12 | 3033593 | . COVER; T.MISSION | 1 | |
| 13 | 4179834 | . O-RING | 1 | |
| 14 | 991733 | . RING; RETAINING | 1 | |
| 17 | 4181700 | . PUMP; GEAR | 1 | |
| 19 | M341028 | . BOLT; SOCKET | 2 | |
| 20 | 984054 | . WASHER; SPRING | 2 | |
| 21 | A590110 | . WASHER | 2 | |
| 23 | 4191974 | . ADAPTER | 1 | |
| 23A | 4506418 | .. O-RING | 1 | |
| 28 | 3034465 | . GEAR; DRIVE | 2 | |
| 29 | 991345 | . RING; RETAINING | 2 | |
| 32 | 9065880 | . PUMP; SINGLE | 2 | |
| 32A | 9070528 | .. REGULATOR | 1 | |
| 35 | M211645 | . BOLT | 8 | |
| 36 | 4126090 | . WASHER; SEAL | 4 | |
| 37 | A590916 | . WASHER; SPRING | 4 | |
| 41 | 94-0649 | . ELBOW | 1 | |
| 42 | J728684 | . REDUCER | 1 | |
| 43 | 4511984 | . PLUG | 1 | |
| 45 | 4196389 | . GAUGE; LEVEL | 1 | |
| 45 | 4196389 | . GAUGE; LEVEL | | |
| 45A | 4509180 | .. O-RING | 1 | |
| 45 | 4236198 | . GAUGE; LEVEL | 1 | |
| 45 | 4242263 | . GAUGE; LEVEL | 1 | |
| 46 | 4236328 | . PIPE; GUIDE | 1 | |
| 46A | 4509180 | .. O-RING | 1 | |
| 46 | 4242262 | . PIPE; GUIDE | 1 | |
| 48 | 4092534 | . PLUG | 1 | |
| 48A | 4509180 | .. O-RING | 1 | |
| 50 | 4184689 | . PIPE | 2 | |
| 51 | 4203485 | . FITTING; PIPE | 1 | |
| 51A | 957366 | .. O-RING | 1 | |
| 52 | 4181053 | . PIPE | 1 | |
| 53 | 4179837 | . FITTING; PIPE | 5 | |
| 53A | 957366 | .. O-RING | 1 | |
| 55 | 3033595 | . PIPE | 1 | |
| 56 | 3036487 | . PIPE | 1 | |
| 57 | 4118499 | . FITTING; PIPE | 4 | |
| 57A | 957366 | .. O-RING | 1 | |
| 59 | 4179843 | . CLAMP | 2 | |
| 60 | J900828 | . BOLT | 1 | |
| 61 | M500807 | . NUT | 1 | |
| 62 | A590908 | . WASHER; SPRING | 1 | |
| 64 | M340816 | . BOLT; SOCKET | 2 | |
| 65 | 4092149 | . BOLT; EYE | 1 | |
| 66 | 4243160 | . PACKING | 1 | |
| 67 | 3037596 | . NAME-PLATE | 1 | |
| 68 | M492564 | . SCREW; DRIVE | 2 | |
| 73 | 4118705 | . COUPLING ASS'Y | 1 | |
| 73A | 4183171 | .. HUB | 1 | |
| 73B | 4183170 | .. SCREW; SET | 2 | |
| 73C | 4101345 | .. PIN; SPRING | 12 | |
| 73D | 4183167 | .. INSERT | 4 | |
| 73E | 4183169 | .. BOLT; SOCKET | 4 | |
| 73F | 4183166 | .. INSERT | 4 | |
| 73G | 4183168 | .. BOLT; SOCKET | 4 | |
| 73H | 4183165 | .. COUPLING | 1 | |
| 74 | J901040 | BOLT | 3 | |
| 75 | 4114402 | WASHER | 3 | |
| 76 | A590910 | WASHER; SPRING | 8 | |
| 77 | J901030 | BOLT | 5 | |
FAQ
1 . How do I contact you?
You can add me on WhatsApp: +86 189 9845 5434,Or send me an email: rayhan@belparts-china.com
2 . How long can I enjoy the warranty period?
The warranty is 6/12 Months based on the item details.The genuine parts we don't have the warranty of it,but just can make sure it is 100% genuine.
3 . How do I pay?
You can complete the payment through PaPal, T/T and other methods.
4 . When will get the items after I place order?
Once we receive your payment, we will arrange delivery within 24 hours; if there is no stock, we will tell you before payment.
5 . How can I do if there is something wrong with the items?
First of all , I have confidence in the quality of our products ,if you really found something wrong ,please provide pictures for us and we will check. After it is confirmed, please return to us , we will offer the correct item.
6 . What is your main products ?
Our pain product is final drive , hydraulic pump , swing gearbox , travel gearbox , swing motor , hydraulic parts. If you need any parts for crawler excavator , you can ask us too . We will try our best to meet your requirement.
